DueGi Cistern Systems — Engineered for Precision, Built to Last

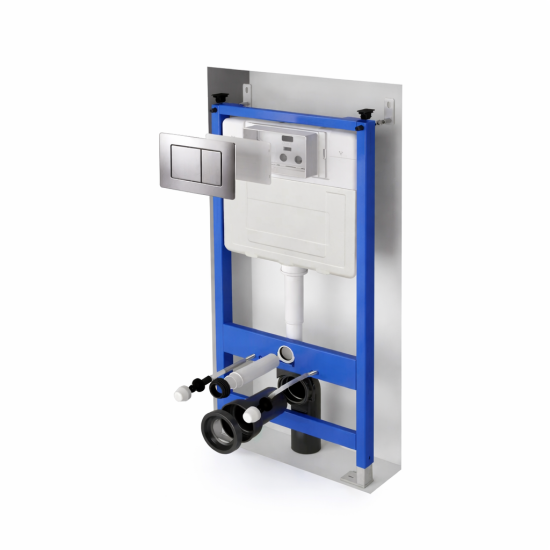

DueGi WC Concealed Tank with Full Frame - Square Plate
Premium DueGi design engineered for timeless functionality and refined Italian aesthetics.
DueGi WC Concealed Tank with Full Frame - Square Plate
Concealed Cistern — Full Frame with Square Flush Plate
Heavy-duty in-wall WC performance with a bold square flush plate. 400kg rated steel frame, ultra-slim 100mm depth, water-saving 3/6L dual flush — DueGi’s most specified concealed cistern system.
Collection Name
Product Number
DGCFS-02
Material
Brass
Colour
PRODUCT DESCRIPTION
TECHNICAL INFORMATION
WARRANTY
The DueGi DGCFS-02 WC Concealed Tank with Full Frame and Square Plate is the most fully specified cistern system in the DueGi range — engineered for demanding professional installations and premium bathroom builds. The heavy-duty steel frame is rated to 400kg, providing exceptional structural load-bearing capacity for wall-hung toilet installations on both solid walls and plasterboard. The one-piece HDPE blow-moulded cistern body eliminates internal joints and dramatically reduces leak risk — a significant advantage over multi-part competitor systems. At just 100mm overall tank thickness, the DGCFS-02 achieves an ultra-slim installation profile without sacrificing internal flush capacity. Water-saving dual flush delivers 3L eco flush and 6L full flush, with adjustable capacity up to 7L maximum to meet varying local standards. Wide water pressure compatibility — from 0.03 MPa to 1.2 MPa — ensures reliable operation across all building types and water supply conditions. The square push plate (250 × 165mm) is the defining design feature, available in Chrome, Gold, or Matte Black to coordinate with DueGi mixer collections.
• Full frame concealed cistern system for wall-hung WC installations
• Heavy-duty steel frame — load rated to 400 KGS
• Klein blue spray paint coated steel frame — corrosion resistant
• Suitable for: solid wall and plasterboard (drywall) installation
• One-piece HDPE blow-moulded cistern body — reduced leak risk vs multi-part systems
• Overall tank thickness: 100mm (ultra-slim profile)
• Product dimensions: 1053 × 105 × 525mm
• Square flush plate: 250 × 165mm
• Hanging holes centre distance: 180mm / 230mm
• Dual flush volume: 3L (eco) / 6L (full flush)
• Maximum adjustable flush capacity: 7L
• Water pressure compatibility: 0.03 MPa – 1.2 MPa (low + high pressure systems)
• Height-adjustable frame legs for flexible positioning
• Adjustable drain outlet position
• Silent fill valve — quiet refill operation
• Condensation-resistant tank design
• Maintenance access through flush plate — no wall breaking required
• Universal compatibility with most WC ceramic brands
• All wall brackets and full mounting kit included
• Push plate available in: Chrome, Gold, Matte Black
• 5-year warranty on cistern body and frame
5 Years Warranty.
